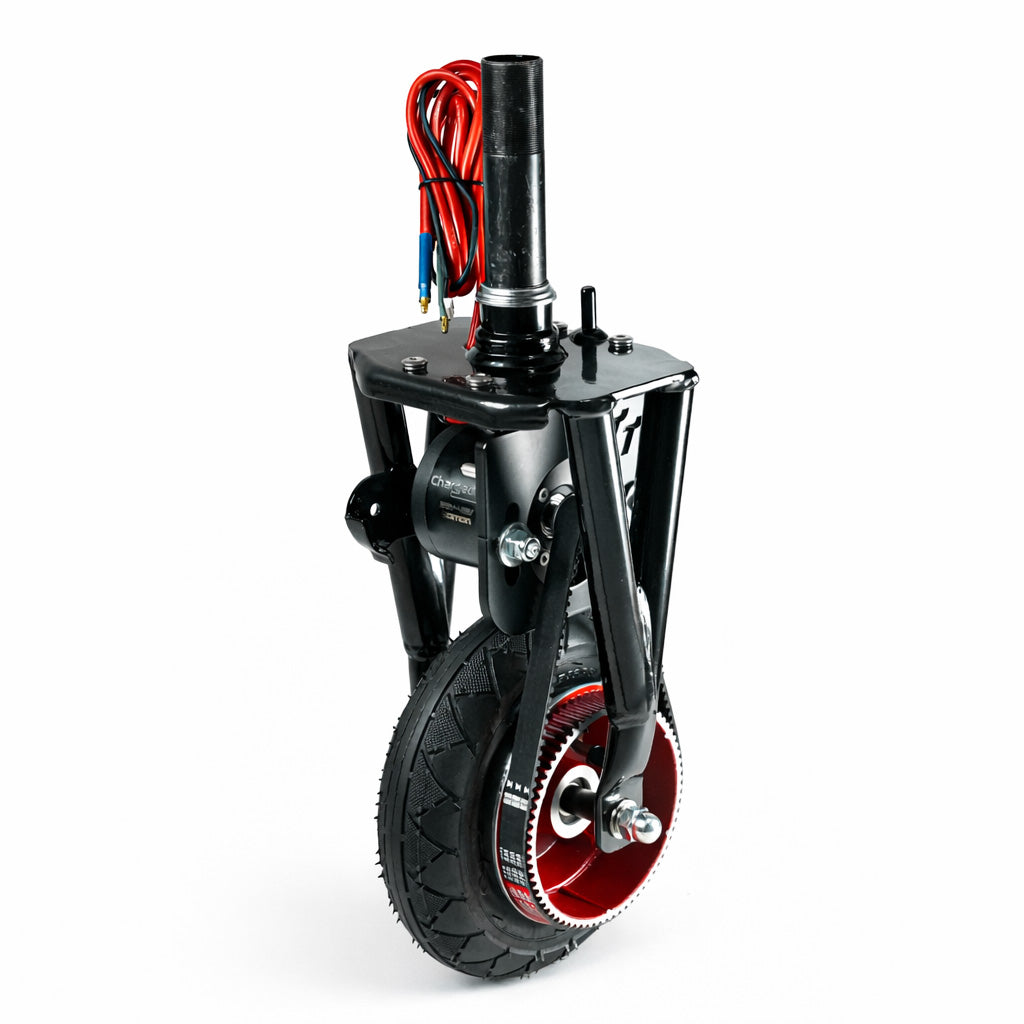

Budget Belt Drive Brushless Kit (4000w) - Standard Crazy Cart Upgrade Kit

On a budget and want a motor kit that works with the stock fork? The budget brushless crazy cart kit is designed to do just that! Its the same exact powertrain that we run on our PRO Karts but without the upgraded fork. Giving you the option to upgrade when you're ready.

THINGS TO NOTE:(Power switch requires slight drilling on the charging port hole plan to make the switch smaller soon!) WARRANTY VOID IF YOU WIRE ON NEW CONNECTORS!! (Reason being is you need a xt90s for the anti spark function)

Performance: 35mph + top speed depending on battery and rider weight.  (This speed is based on 48v 30a) YOU ARE DOING SO AT YOUR OWN RISK, more amps will give you more torque not top speed **

On 36v expect 23+ mph!

36v x 60a = 2100w

48v x 60a = 2800w

Battery Requirements: For optimal performance, a minimum 36v battery capable of delivering 30a continuous.

48v is the max voltage for this motor!

Compatibility: This kit is exclusively designed for standard carts. DOES NOT FIT THE XL CART!
Must have original chain tensioner if using a stock fork!!

Bluetooth Connectivity: With the addition of Bluetooth, you can easily access speed data, total miles driven, and make power adjustments right from your phoneVia “vesc tool”. For users without Bluetooth, these features can still be accessed via a PC using a cable connection.

KIT INCLUDES:

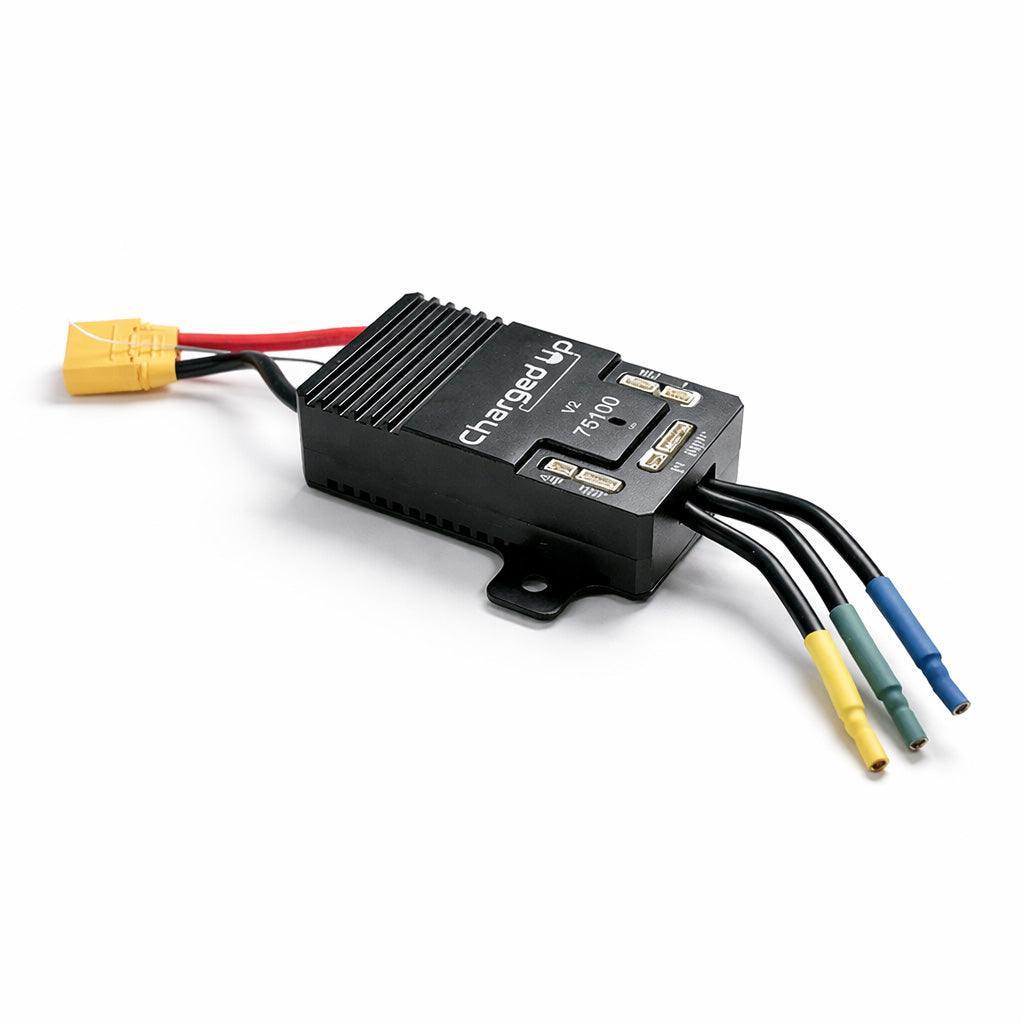

1. Pre-tuned 7200w capable VESC open-source controller.

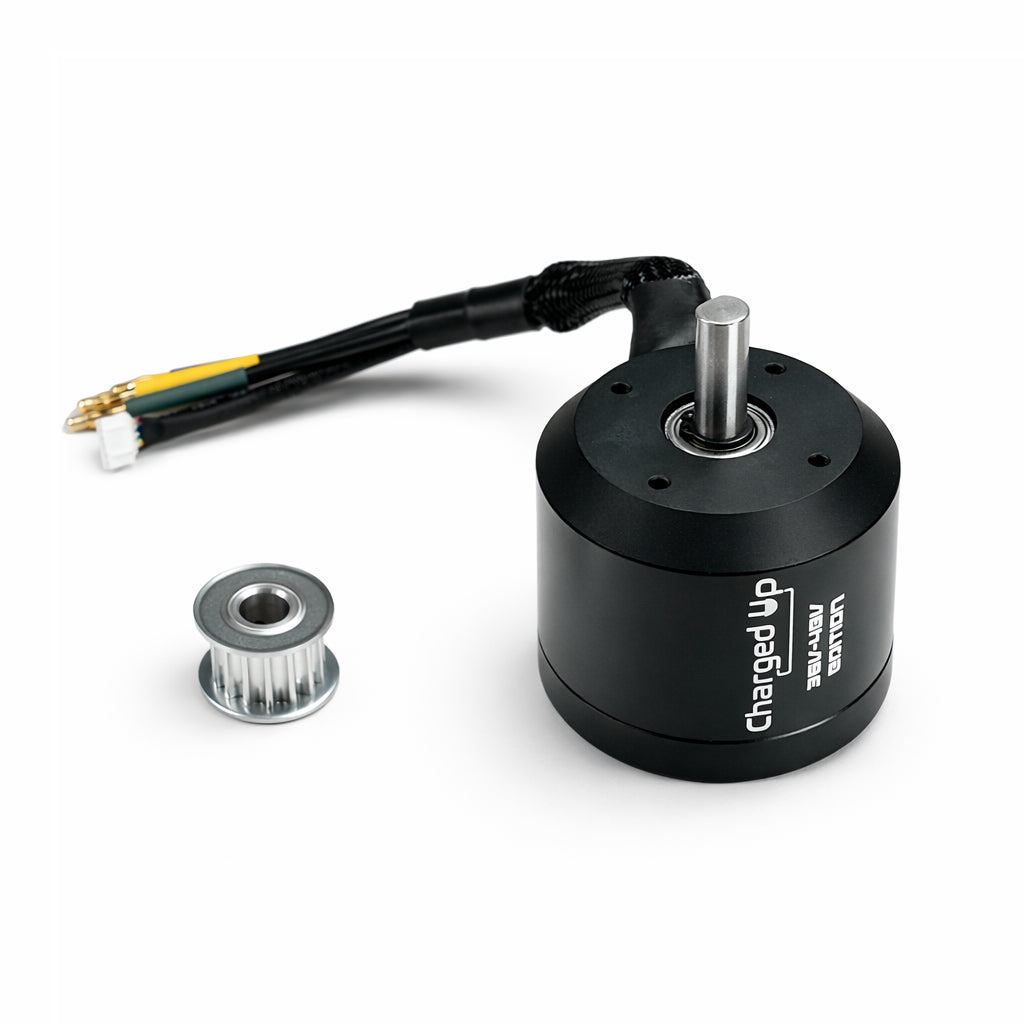

2. 4000w capable brushless motor.
3. 15t Belt Drive Sprocket & Set Screws.
4. 520mm Reinforced Belt.
5. Belt Drive 72t Rim
6. Axle Bolt & Custom Spacers
7. Phase & Hall Sensor Cables
8. VESC to Crazy Cart throttle plug.

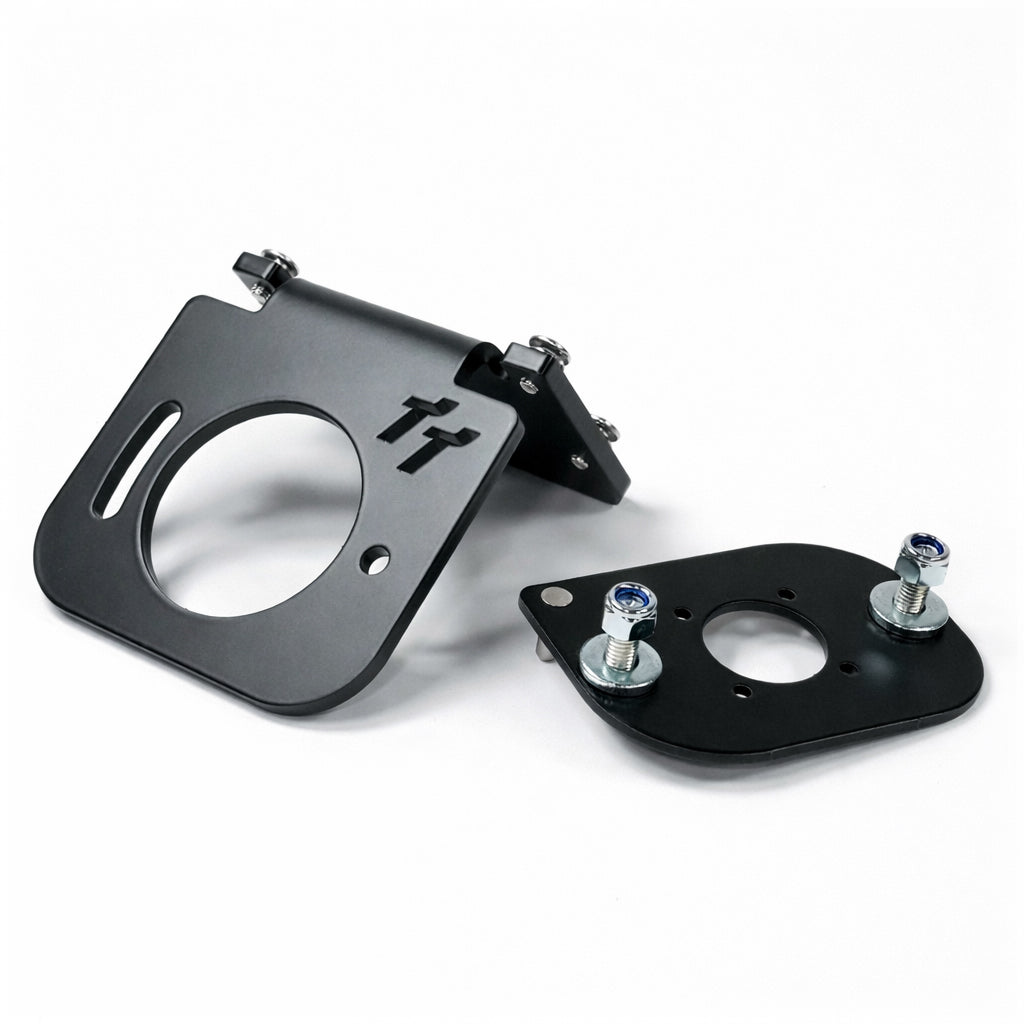

9. Tottoms Adjustable 7070 Motor Mount - Standard Fork Compatible.
10. VESC Controller Mount.
11. Hardware Pack

Reliable Performance: Each motor in the kit is thoroughly tested with its paired controller on a bench. The stock tune provides 1400w of power, but the kit can reliably handle up to 4000w. For users with compatible batteries, power can be easily adjusted as desired.

Safety Disclaimer: As the provider of this kit, I must stress that I am not liable for any injuries, damages, or issues that may arise from its usage and application. For those unfamiliar with electronics, it is strongly advised to seek assistance from a qualified professional during installation. Following these precautions ensures that the kit is utilized responsibly and safely.

VESC is a registered trademark of Benjamin Vedder

Big thanks for Benjamin for making vesc tool the app we use to program this and the app that everything electronic will run off one day!
